Automation Tools (CLI)

The Squidex CLI (Command Line Interface) is a terminal application available for Windows, Linux and macOS (OS X).

The CLI has two main advantages:

1. It is easy to automate things in your build and release processes, for example, you can trigger nightly updates and schema migrations from one App to another or export content.

2. It is easier to integrate complex features, such as export to CSV because it takes more time to write a good user interface than the export routine itself.

Installation

The CLI can be installed by downloading the binaries from the GitHub release page here: https://github.com/Squidex/squidex-samples/releases

If you are a .NET developer you can also install the CLI from Nuget:

dotnet tool install --global Squidex.CLI

How to Use the CLI?

Hopefully, the CLI itself is good enough for you and you can use the integrated help to navigate through all the features.

The general structure of each command is as follows:

.\sq.exe [FEATURE] [COMMAND] [ARGS] [OPTIONAL_PARAMETERS]

Depending on your use cases you will need a client with the Developer or Owner role.

How to Manage Configurations

A configuration contains all information to connect the CLI to a specific App in your Squidex installation and contains the App Name, Client ID, Client Secret (and optionally the URL to your installation if you do not use the Squidex Cloud).

The CLI can manage multiple configurations, so you don't have to define the App, client and secret for each command. Configurations are stored in a file that is located just next to the CLI, so you need to write permissions to this directory.

The config feature of the utility is used to manage configurations.

STEP 1: Add a Configuration

.\sq.exe config add [APP_NAME] [CLIENT_ID] [CLIENT_SECRET]

STEP 2: Show all Configurations

.\sq.exe config list

To view the configurations as a table use -t or --table.

.\sq.exe config list -t
.\sq.exe config list --table

STEP 3: Switch to Another Config

When working with multiple Apps, the config use command can be used to switch between Apps. It is used to select an App (configuration) from a list of configurations.

.\sq.exe config use [APP_NAME]

Use Cases

The following section describes the most common use cases and how to execute them with the CLI.

Synchronize all App Settings

A common use case of the CLI is that you can synchronize your Squidex app settings using the sync command.

The syntax for it is:

.\sq.exe sync [COMMAND] [OPTIONS] [ARGS]

The sync command can be used to export or import your App settings to a set of JSON files. This command is able to synchronize the following settings:

• Schemas

• Contents

• Contributors (this setting can be imported only)

• Clients

• Roles

• Rules

• Workflows

Use Case - Create Sample Configuration files

The sync command can be used to create a new folder with sample files that can then be imported to the App.

The following command does the same (replace <folder> with a folder name of your choice):

.\sq.exe sync new <folder>

The CLI creates a set of sample configuration files that begin with __ (see screenshot below). The files starting with a double underscore are ignored during the synchronization. Therefore, you have to rename or copy the samples files in order to sync them.

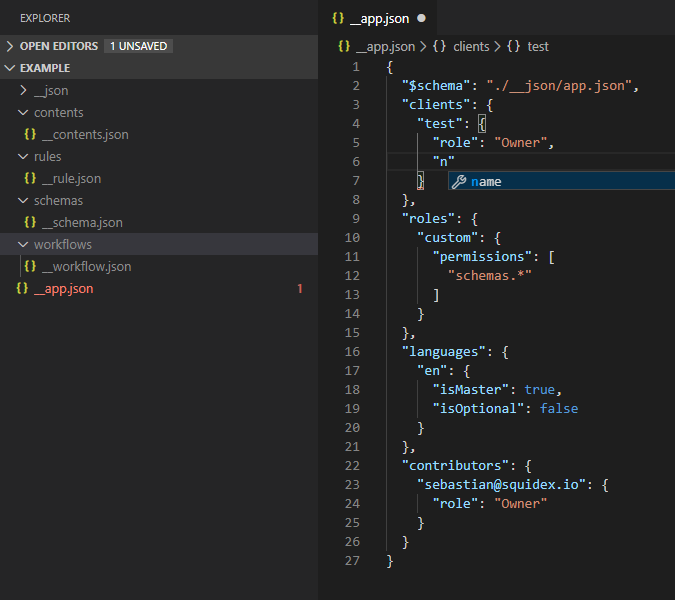

The screenshot below shows a typical folder structure with sample configuration files:

The CLI also generates JSON schema files that are referenced by the configuration files and provide basic intelligence features in editors such as Visual Studio Code. You will see error messages when you do not follow the JSON schema. Do also look out for additional errors that might occur when synchronizing your configuration.

Use Case - Import (Synchronize Configuration From Folder to App)

To synchronize a configuration (created through the CLI) with your App, use the following command replacing <folder> with the folder name where the configuration is:

.\sq.exe sync in <folder>

The sync in command also provides flags to control the synchronization process. You can view a list of supported flags/options by running the following command:

.\sq.exe sync in --help

Use Case - Export (Synchronize Configuration from App to Folder)

The sync command also lets you export your App configuration to a folder. If you do not want to start from scratch, you can also export. Use the following command replacing <folder> with an actual folder name.

.\sq.exe sync out <folder>

For example, in the following screenshot we are exporting the configuration of an App called blog-with-squidex to our local machine where CLI is installed. The client has the Owner role.

.\sq.exe sync out blog-with-squidex

The sync out command also provide flags to control the synchronization process.

.\sq.exe sync out --help

Restrictions

The synchronization feature has a few restrictions:

1. Contributors Cannot be Exported. We use the email address of the users to add new contributors to your App. However, because Squidex protects the PII (Personally Identifiable Information) of our users, we do not expose email addresses via the API and therefore cannot export the contributors.

2. Content Cannot be Exported. In contrast to other entities, such as schemas or workflows, an App can have tens of thousands of content items and therefore it does not make sense to export them.

3. Content Cannot be Deleted. It is just too complicated!

Synchronizing Schemas

The CLI provides a mechanism to synchronize schemas using a JSON file. The schemas command helps you to achieve this. The syntax for this is:

.\sq.exe schemas [command] [options]

STEP 1: Use the config command to select the source App and then save the schema to a JSON file.

.\sq.exe config use app1
.\sq.exe schemas get schema1 > schema.json

STEP 2: Use the config command again to switch to the destination App and sync the schema from the saved file.

.\sq.exe config use app2
.\sq.exe schemas sync schema.json

Or you can also sync it to another schema name.

.\sq.exe schemas sync schema.json --name <schema-name>

Start a Backup

You can also create a backup using the CLI. This is achieved by using the backup command.

.\sq.exe backup create backup.zip

Export Content to CSV

.\sq.exe content export <schema-name> --fields=id,version

You have to define the fields you want to export. The general syntax is:

(<CSV_COLUMN>=)?<JSON_PATH>

The CSV column is optional and can be skipped. If no column name is specified, the path string will be used.

To get a good understanding of paths, it is helpful to have a look to the API documentation of your schemas, e.g.

https://cloud.squidex.io/api/content/squidex-website/docs#operation/GetTestimonialsContent

Some sample paths

• id

• version

• data.personName.iv

• data.personName (iv is added by default for non-localized fields)

• personName=data.personName (Column name for non-localized field).

More examples (not from the example operation above):

• data.text.en (Localized field)

• data.hobbies.iv.0.name(For array of objects)

• data.hobbies.iv(To serialize the whole array to a string)

• data.json.iv.property (For a nested object)

• data.json.iv (To serialize the whole object to a string)

If the extract value is a JSON array of an object, it will be serialized to a string.

Export Content to JSON

.\sq.exe content export <schema-name> --format=JSON

Take a look at the help section of the content export command for a list of all options.

.\sq.exe content export --help

Import Content from CSV

.\sq.exe content import <schema-name> File.csv --fields=text

You have to define the fields you want to import. The general syntax is:

<JSON_PATH>(=<CSV_COLUM>)?

The CSV column is optional and can be skipped. If no column name is specified, the path string will be used.

To get a good understanding of the paths, it is helpful to have a look to the API documentation of your schemas, e.g.

https://cloud.squidex.io/api/content/squidex-website/docs#operation/GetTestimonialsContent

Some sample paths:

• personName.iv=personName

• personName (iv is added by default for non-localized fields)

More examples (not from the example operation above):

• text.en=text (Localized field)

• hobbies.iv.0.name=firstHobby(For array of objects)

• hobbies.iv=hobbies(To serialize the whole array to a string)

• json.iv.property=jsonProperty (For a nested object)

• json.iv=json (To serialize the whole object to a string)

If the extract value is a JSON array of an object it will be serialized to a string.

Import Content from JSON

.\sq.exe content import <schema-name> File.json --format=JSON

Take a look at the help section of the content import command for a list of all options.

.\sq.exe content import --help

Use Case: Generate Test Data

Sometimes, it is useful to generate test data for a field, e.g. if you need several hundred of items to test a user interface.

This can be done with the CLI as well:

.\sq.exe content test-data <schema-name> --count 100

Before you generate the data you can also test it by dumping the data to a file first:

.\sq.exe content test-data <schema-name> --count 100 --file Test-Data

The CLI does not support all field types, it has the following restrictions:

• No support for references.

• No support for assets.

• No support for string fields with a pattern validator.

It is also unable to support custom validations via scripts or custom extensions.

How to Use Help Feature Within the CLI

The CLI utility has an inbuilt help feature which can be accessed by using the --help parameter.

For example --help at the utility level will show all features the CLI supports.

.\sq.exe --help

Similarly a --help parameter after a feature gives information about all the commands the feature supports. For example:

.\sq.exe config --help
